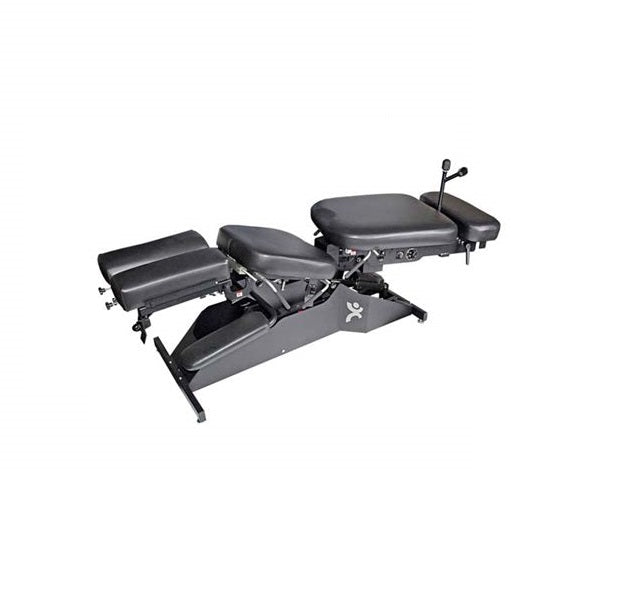

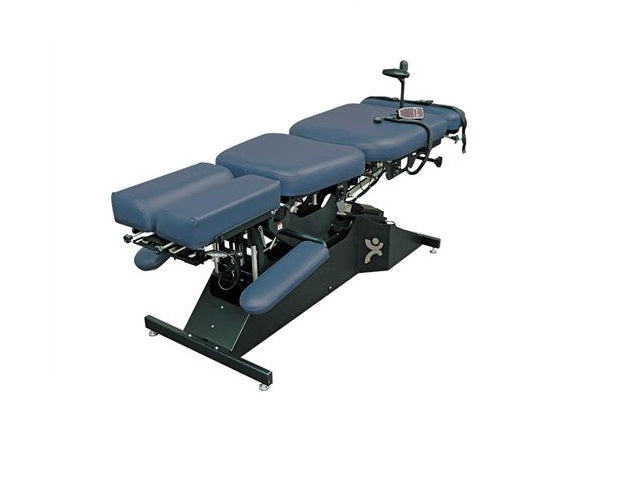

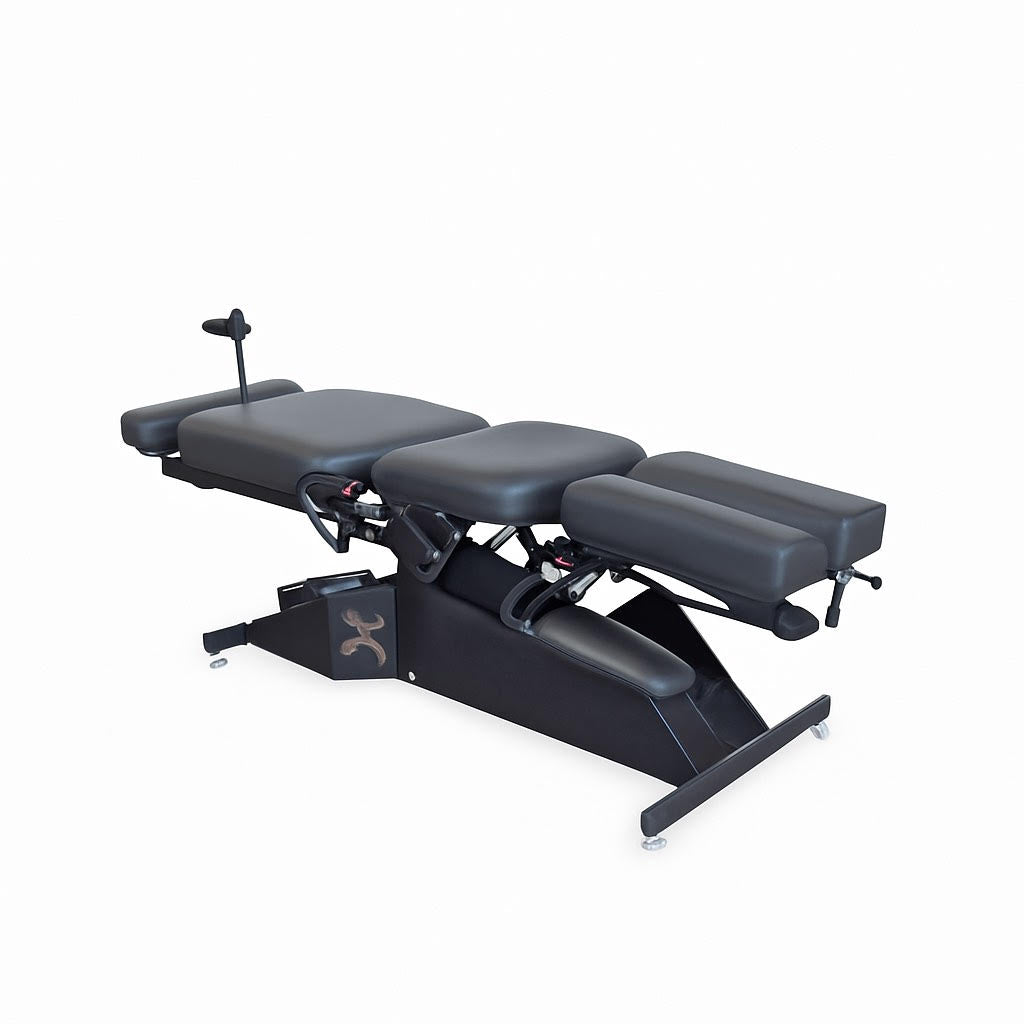

TradeFlex E9017 Manual Flexion

The TradeFlex Manual Flexion table is a workhorse, giving you and your patients a wide variety of options, from drops and headpieces to height, elevation and even long-axis distraction. You will appreciate the electric tension controls and removable flexion control t-bar that will allow you to move freely around the table. Your patients will benefit from the ability to preform figure-8 range of motion traction, a smooth range of 15° of lateral flexion and a flexion depth of 15° to accommodate almost any angle of drive. The TradeFlex Manual Flexion table also offers versatility that will save you time and money, allowing for optimum correction of spinal subluxations or disc problems yet still functioning as an exam, adjusting or therapy table.

Standard Tables:

• E9017 - TradeFlex Manual Flexion Table (120V)
• E9217 - TradeFlex Manual Flexion Table (240V)

Standard Features:

• Stationary table height is 20"
• P/A Flexion: 15°
• Rear lateral flexion: 15°
• Electric spring tension
• 10" Ankle extension
• Breakaway abdominal
• 22" Wide comfort cushions
• Tilting headpiece with adjustable face cushions
• Steel base
• Short T bar and SST strap
• Paper roll holder and cutter


Elevation Foot Control Options:

• E4802 - Extended Stationary Height Beyond 26" (Per Inch) (Stationary table height is 20" - adding height is no extra charge up to 26")
• E9017-L - Elevation - 21-29" with Single Foot Pedal (120V)
• E9217-L - Elevation - 21-29" with Single Foot Pedal (240V)
• 95284 - Dual Foot Pedal for Elevation

Specifications:

• Lifting capacity: 350 lbs.
• Overall dimensions: 73"L x 28"W x 20"H
• Extended maximum length with ankle extension: 83"L
• Cushion width: 22"W
• Rated voltage: 120V/240V
• Rated frequency: 50/60Hz

Headpiece Options:

• E4401 - Tilt, Forward Drop, Adjustable Face Cushion
• E4408 - Tilt, Elevation, Adjustable Face Cushion
• E4409 - Tilt, Cervical Distraction, Adjustable Face Cushion
• E4410 - Tilt, Elevation, Forward Drop, Toggle Drop, Adjustable Face Cushion
• E4411 - Tilt, Elevation, Forward Drop, Toggle Drop, Cervical Distraction, Adjustable Face Cushion
• E4423 - Lateral Flexion (14°) - (Only available on headpieces with elevation)

Drop Options:

• E4412 - Thoracic Manual Drop
• E4413 - Lumbar Manual Drop
• E4414 - Pelvic Manual Drop

Long Axis Distraction Options:

• E4415 - Long Axis Distraction (120V)
• E4416 - Long Axis Distraction (240V)
