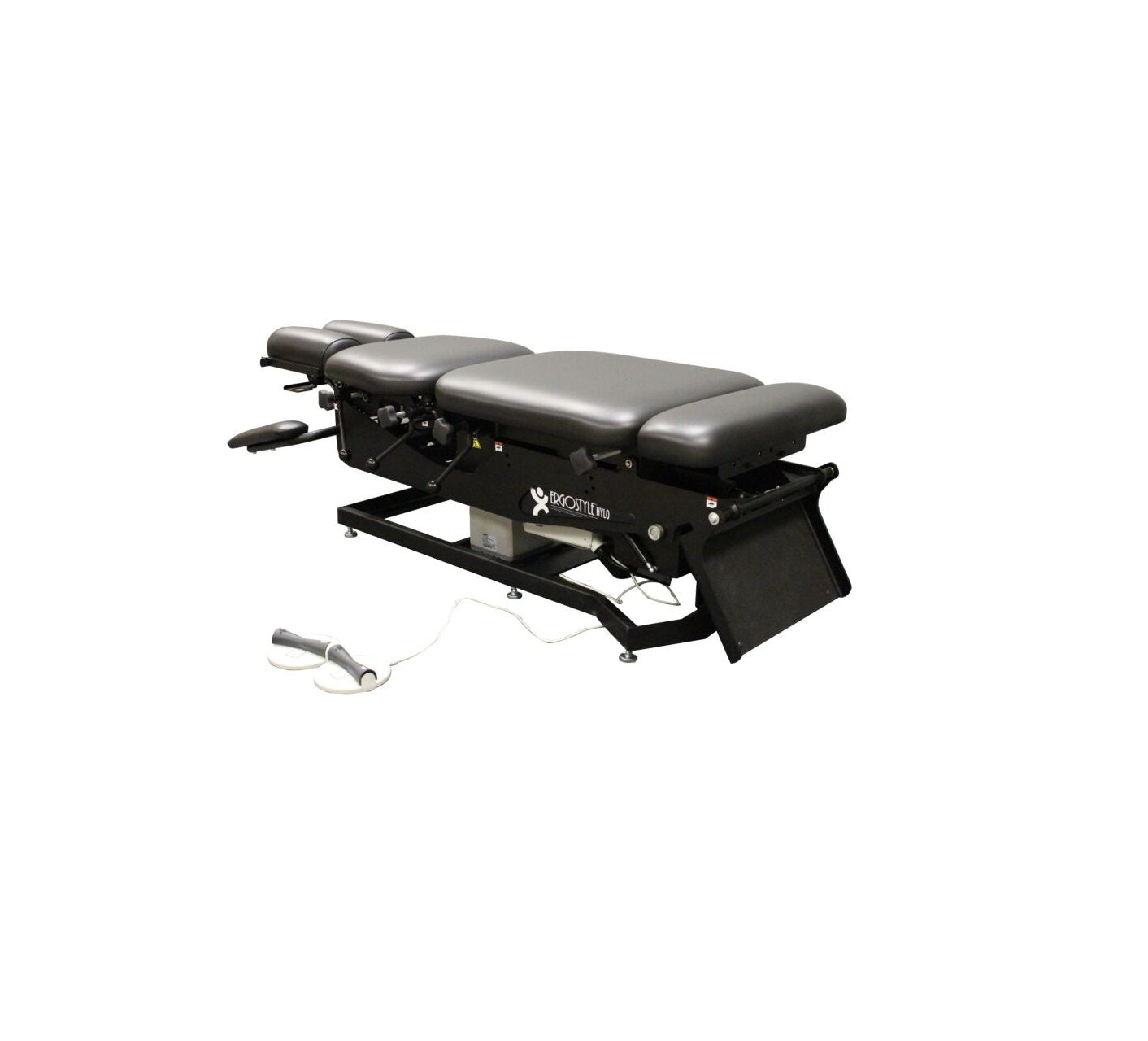

ErgoStyle Elevating Hylo

The ErgoStyle Elevating HYLO Table is feature-rich with smooth elevation and up to 63° tilting capabilities that reduce stress on you and your patients.

The ErgoStyle Elevating HYLO Table also features a tuck away foot plate giving better access to the end of the table. Because it’s fully modular, it allows for easy modifications and upgrades as your practice and techniques grow.

Choose from manual drops, various adjustable headpieces, breakaway chest and many other options to customize your table to your practice needs.

Table Configurations:

• EH9400 - ErgoStyle Elevating HYLO Table - 120V
• EH9420 - ErgoStyle Elevating HYLO Table - 240V
• EH9421 - ErgoStyle Elevating HYLO Table with Auto-cocking (120V) - Includes Thoracic, Lumbar and Pelvic Drops with Manual Drop Handles and Dual Auto- cocking Foot Pedal
• EH9422 - ErgoStyle Elevating HYLO Table with Auto-cocking (240V) - Includes Thoracic, Lumbar and Pelvic Drops with Manual Drop Handles and Dual Auto- cocking Foot Pedal

Standard Features:

• Electric elevation from 20-30"

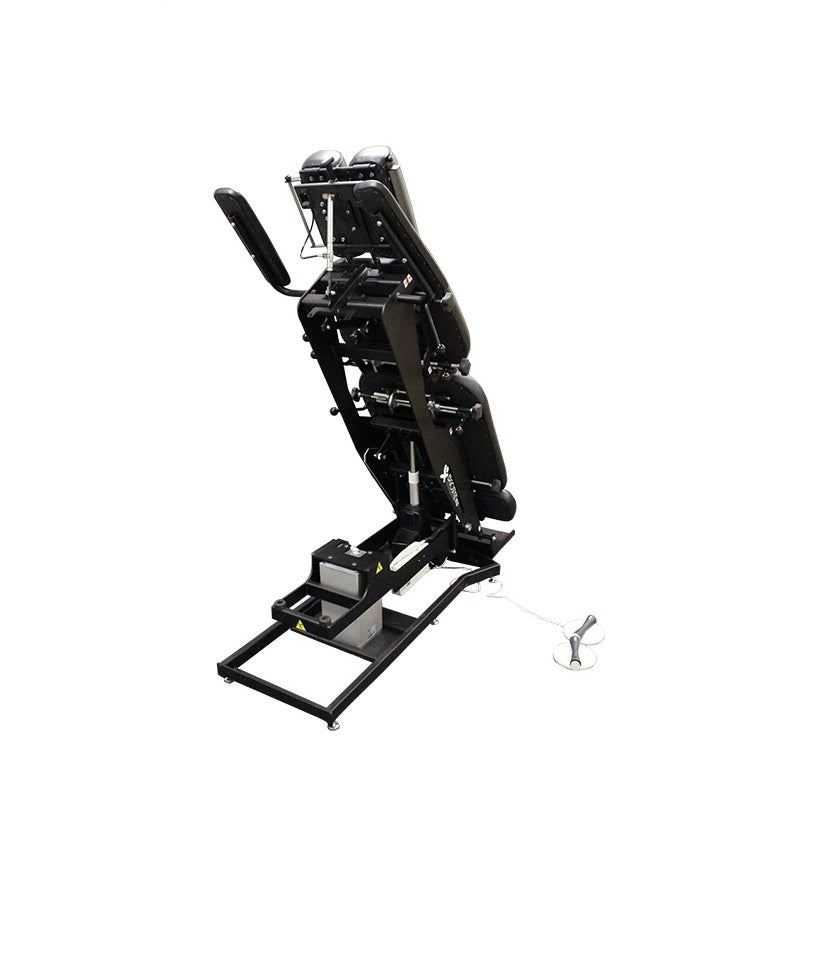

• 0-63° Tilting
• Single foot pedal for elevation & HYLO
• Tilting headpiece with adjustable sewn face cushions
• 22.5" Wide seamless cushions with multi-density foam
• Locking 6" extending ankle rest
• Stationary chest
• Fixed pelvic section
• Paper roll holder and cutter
• Durable powder coat finish
• ADA compliant

Specifications:

• Lifting capacity: 400 lbs.
• Overall dimensions: 70"L x 28"W x 20-30"H
• Extended maximum length with ankle extension: 76"L
• Cushion width: 22.5"W
• Rated voltage: 120V/240V
• Rated frequency: 50Hz/60Hz
• Current: 4.5 Amps
• Duty cycle: Intermittent-Max: 2 Minutes On, 18 Minutes Off

Table Options

Headpiece Options:

• ES95002 - Tilt, Forward Drop, Toggle Drop, Adjustable Face Cushions
• ES95003 - Tilt, Elevation, Adjustable Face Cushions
• ES95004 - Tilt, Elevation, Forward Drop, Toggle Drop, Adjustable Face Cushions
• ES95010 - Tilt, Cervical Distraction, Adjustable Face Cushions
• ES95011 - Tilt, Forward Drop, Toggle Drop, Cervical Distraction, Adjustable Cushions
• ES95012 - Tilt, Elevation, Forward Drop, Toggle Drop, Cervical Distraction, Adjustable Cushions
• ES95013 - Tilt, Elevation, Cervical Distraction, Adjustable Face Cushions
• E4423 - 14° Lateral Flexion (Only Available on Headpieces with Elevation)

Chest Piece Options:

• ES95005 - Breakaway, Elevating Chest with Dual Side Control

Pelvic Options:

• ES95015 - Elevating Pelvic Section

Manual Drop Options: (Do not choose with Auto Cocking - Included)

• ES58353 - Thoracic Manual Drop
• ES58354 - Lumbar Manual Drop
• ES58355 - Pelvic Manual Drop
