- Electric hydraulic controlled elevation
- Adjustable width tilting headpiece
- One piece adjustable chest
- Adjustable pelvic
- Adjustable ankle rest (horizontal)
- Total Drop SystemTM (Forward Motion Drop Head w/BIPA, Chest Drop (Manual) Lumbar/Pelvic Drop (Manual)

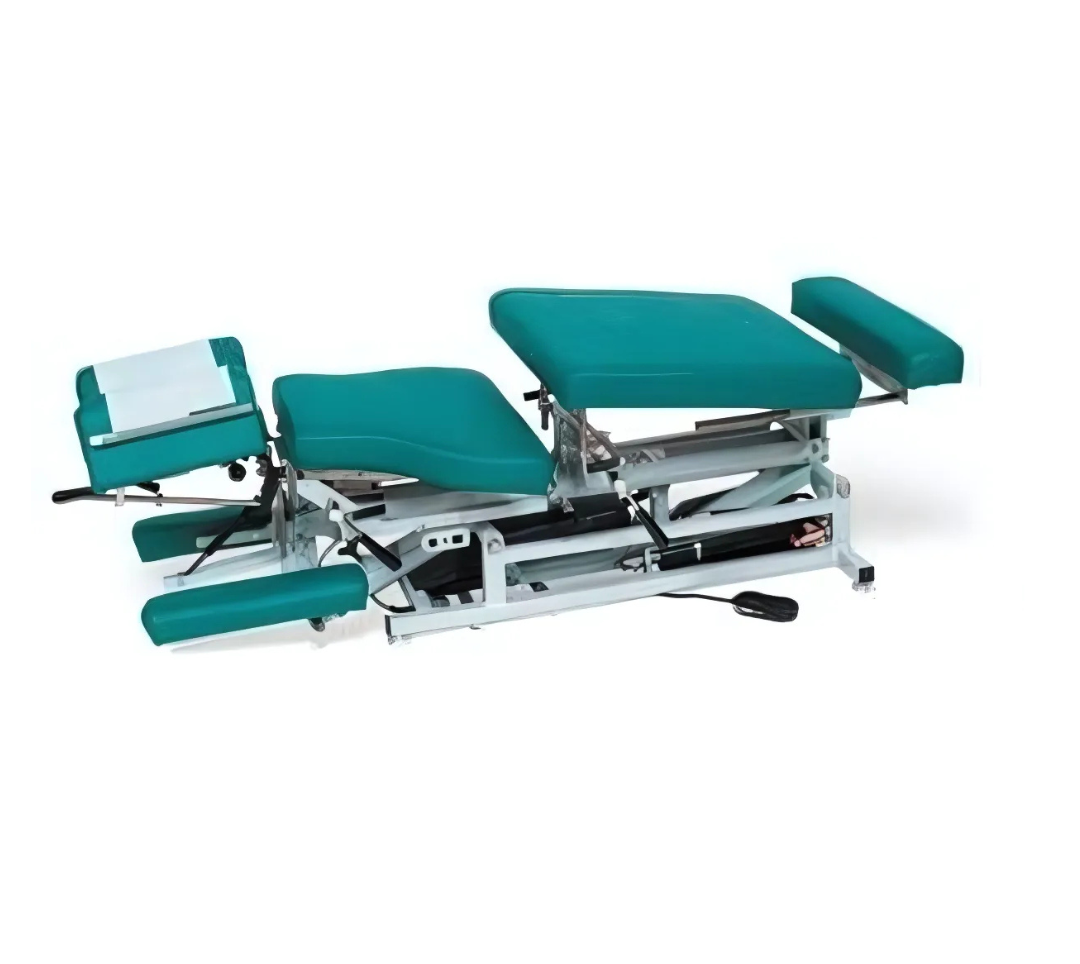

The 402 Elevation provides electric hydraulic lift to any height from 19" to 39" in 10 seconds with superior stability, and will lift patients weighing up to 700 lbs. Optional superior automatic cocking drops and Electronic Height Adjustment are available.
| Elevation Table Specifications |
| Height Range |
19" to 39" |
| Fully Extended |
75 Inches |
| Fully Retracted |
62 Inches |
| Foam |
3" Firm |
| Table Width |
22" (extra width available) |
| Shipping Weight |
250 lbs. (approx) |
| Actual Weight |
180 lbs. (approx) |
Lloyd's drop design allows the amount of force applied to be equal, whether that force is applied on the right, left or center of the cushion, making them superior to other drops on the market. The automatic cocking drops are built into the table with controls on each side and can be set manually in the event of electric failure. No air compressor is required. A specially designed spring release on the chest section is optional. Optional manual and automatic drops are available.
