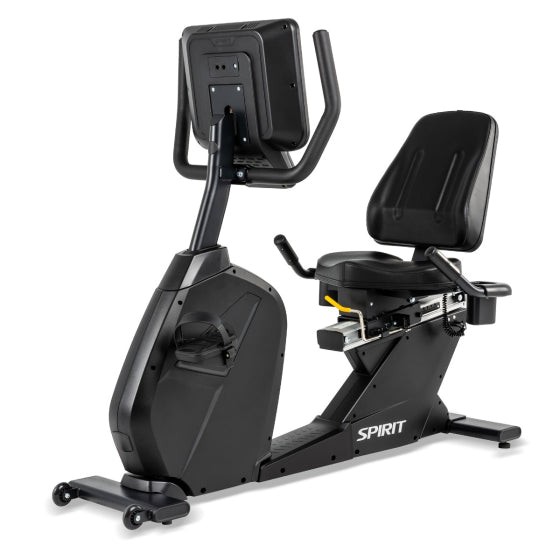

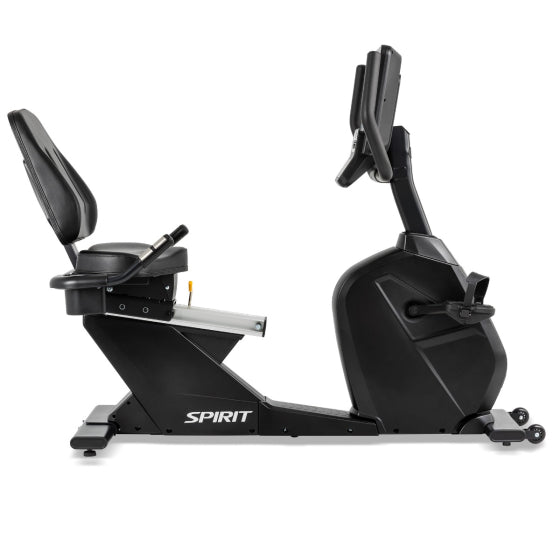

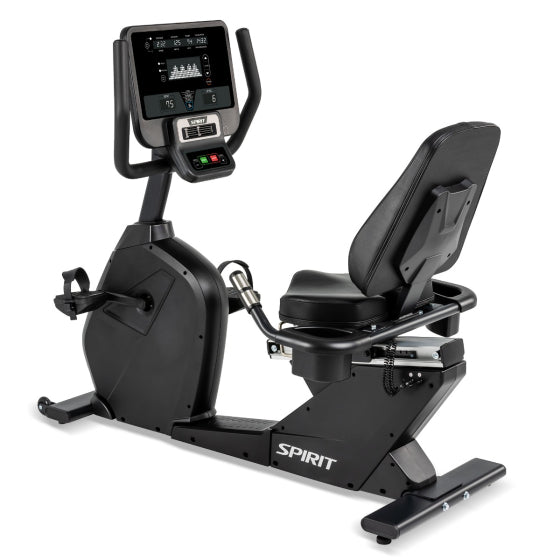

The Recumbent Bike CR800 – Spirit is a semi-recumbent cycle engineered for commercial environments. Designed with a step-through frame and an easy-adjust seat, it provides quick, comfortable access for users of varying mobility levels. Its self-generating power system ensures cordless operation, while a smooth, 40-level magnetic resistance delivers tailored workouts for a wide fitness spectrum.
Key Features
-
Self-Generating Power System – Pedaling powers the console, eliminating the need for external electricity.
-

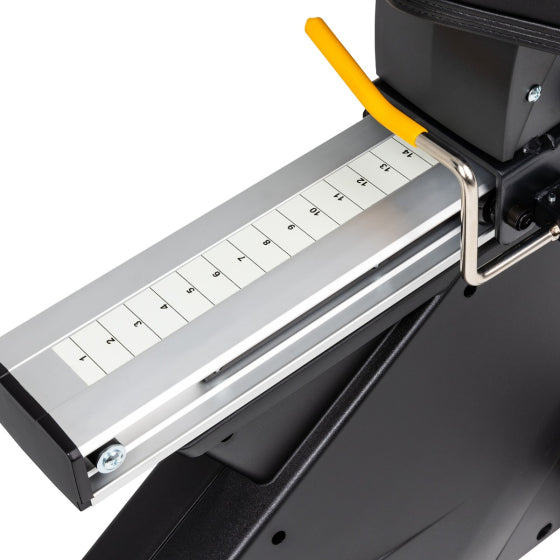

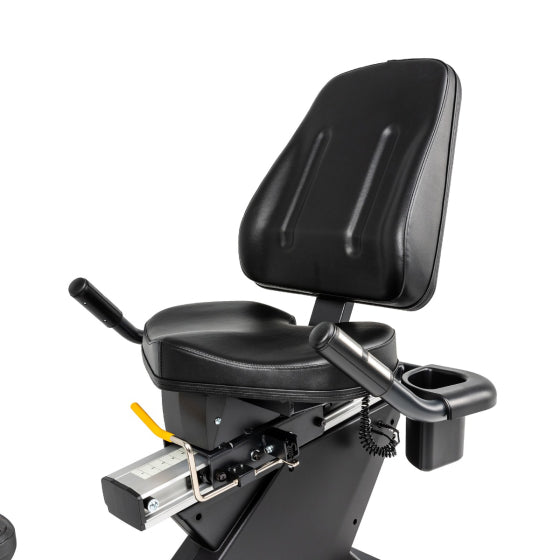

Adjustable Comfort Seat – High-durometer foam seat and back pad with fore/aft adjustment via quick-release lever.
-

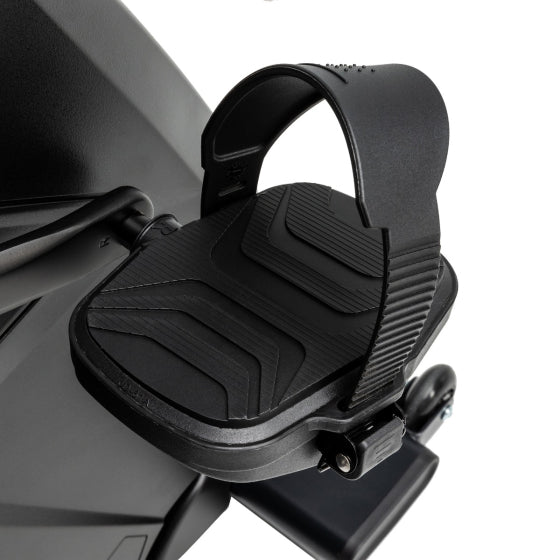

Ergonomic Pedal Design – Oversized, fast-latching pedals with 2° inward tilt and a compact Q-Factor of 7.9” for anatomically aligned motion.
-

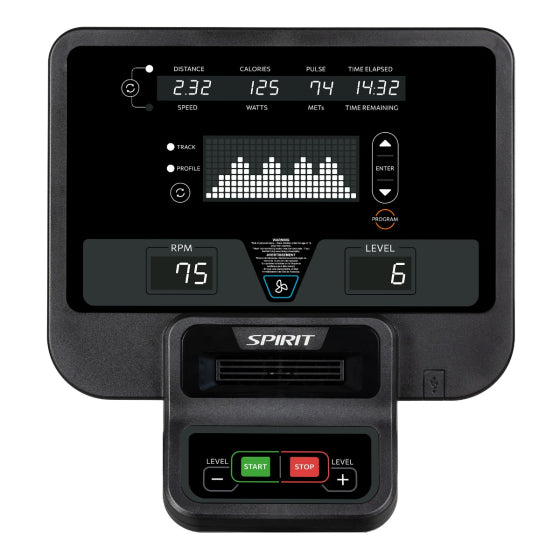

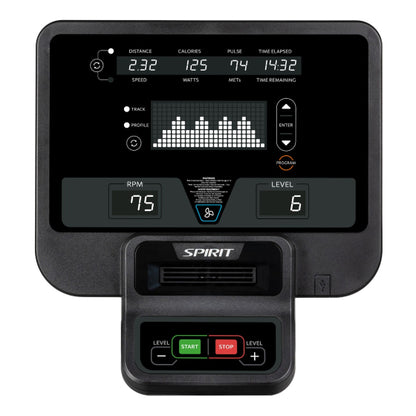

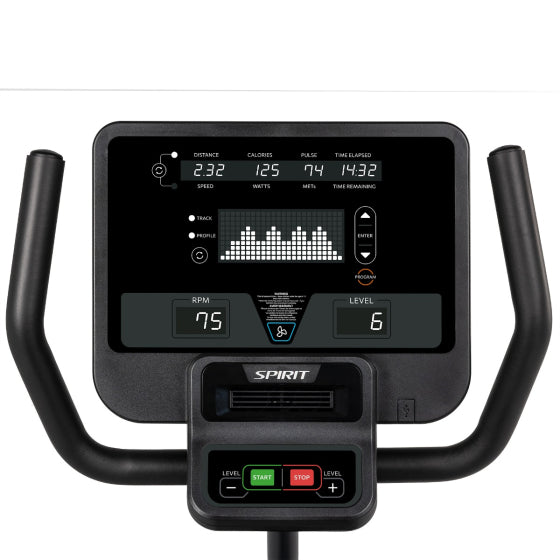

Advanced Console Display – Bright LED console with four windows delivering seven key workout metrics and program profiles.
-
Programs & Metrics – Includes Manual, Hill, Fat Burn, Cardio, HIIT, Interval, Heart Rate control (2 modes), Custom, Fit Test, and Constant Power options.
-

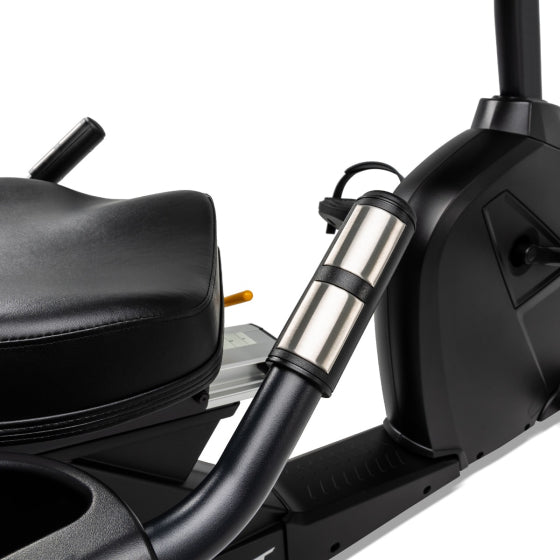

Connectivity – Bluetooth FTMS, USB charging, CSAFE compatibility. Heart rate detection via contact grips and wireless (5 kHz/Bluetooth) receivers.
-
Convenience Features – Built-in cooling fan, dual storage trays, cell-phone ledge, accessory read rack, and transport wheels for easy mobility.
Technical Specifications
| Category |
Details |
| Power |
Self-Generating (No External Power Needed) |
| Resistance |
40 levels (Induction Brake) |
| Flywheel |
30 lbs |
| Drive System |
Belt with Self-Tensioner |
| Q-Factor |
7.9″ |
| Seat Type |
High-durometer foam, adjustable |
| Stride/Pedal Motion |
13″ stride (distance) |
| Console Display |
4 White LED windows showing distance, speed, calories, watts, pulse, METs, time elapsed/remaining, RPM, level, program |
| Programs |
Manual, Hill, Fat Burn, Cardio, HIIT, Interval, HR (2), Custom, Fit Test, Constant Power |
| Connectivity |
Bluetooth FTMS, USB, CSAFE |
| Heart Rate Monitoring |
Contact handsensors + Bluetooth & 5 kHz receivers |
| Convenience Features |

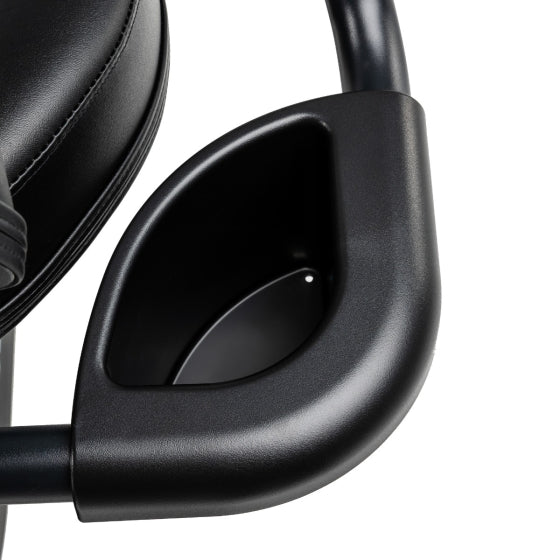

Fan, dual trays, cell phone ledge, cup holders, transport wheels |
| Dimensions (Set Up) |
59.4″ L × 29.1″ W × 50.8″ H |
| User Inseam Range |
29.3″–39.4″ |
| Unit Weight |
~163 lbs |
| Max User Weight |
450 lbs |
Warranty
-
Light Commercial (non-membership facilities):
Frame: Lifetime | Brake: 5 years | Parts: 5 years | Console Parts: 2 years | Console Labor: 1 year | Wear Items: 6 months
-
Residential:
Frame, Brake, Parts: 10 years | Labor: 2 years | Wear Items: 6 months
Ideal For
Ideal for rehab clinics, senior facilities, and fitness centers that require a stable, low-impact cycle combining comfort and functionality. Its ergonomic design and advanced programming make it perfect for users needing joint-friendly cardio training with adjustable intensity.
